1. Oil seal details
| Part No. | A810190 |
| Machine | Hitachi ZX210 ZX250 ZX370 ZX380 ZX400W ZX850 CX400 CX500 CX900 |
| OEM | Standard |
| Material | FKM,NBR,PU,HNBR,SILICON |
| Oil seal type | O-RING |
2.Parts on group DRUM SHAFT (BOOM HOIST):
| Pos. | Part No. | Parts name | Pos. | Part No. | Parts name |
| 0 | 2037128 | SHAFT | 31 | 4162766 | PIN;KNOCK |
| 1 | 1012249 | DRUM;BOOMHOIST | 32 | J901650 | BOLT |
| 3 | 4334662 | SPACER | 33 | 3035018 | RETAINER |
| 4 | A810110 | O-RING | 34 | A810190 | O-RING |
| 5 | 4175879 | SPACER | 35 | 984194 | SEAL;OIL |
| 6 | J75581 | FITTING;GREASE | 36 | J011230 | BOLT;SEMS |
| 7 | 4162997 | BRG.;BALL | 37 | J901225 | BOLT |
| 10 | X4811 | RETAINER | 38 | A590912 | WASHER;SPRING |
| 11 | 4086891 | WASHER | 39 | 4141855 | COVER |
| 12 | J901232 | BOLT | 40 | 4141854 | PACKING |
| 14 | 930659 | SEAL;OIL | 41 | 923810 | SEAL;OIL |
| 15 | 3035424 | PEDESTAL | 44 | M923011 | BOLT |
| 17 | J011035 | BOLT;SEMS | 45 | 4114408 | WASHER |
| 19 | 4510122 | BRG.;SPH.ROL. | 46 | 4122547 | PIN;KNOCK |
| 20 | 3042805 | RETAINER | 48 | 971380 | GAUGE;LEVEL |
| 21 | 4136437 | SPACER | 50 | 94-2025 | PLUG |
| 22 | 3030018 | GEAR | 51 | 94-2028 | PLUG |
| 23 | 454962 | WASHER;BRG. | 53 | 4162764 | SHIM |
| 24 | 454945 | NUT;BRG. | 54 | 4162765 | SHIM |
| 27 | 1008231 | CASE;GEAR | 55 | 4162763 | SPACER |
| 28 | 1008232 | COVER | 56 | A590920 | WASHER;SPRING |
| 30 | A590916 | WASHER;SPRING | 57 | J932011 | BOLT |
3. Package & Delivery
Package Details
Exquisite packaging box
Delivery Time
1-2 Days For Stocks After Payment, 10-20 Days For Large orders
4. Specifiions
We have a professional team more than 15 years to dealing with all
types of seals.
We deeply believe that high-quality products, appropriate prices,
professional knowledge and after-sales service will bring long-term
cooperation.
Our advantages:We have our own factory;We have a complete
database;We have big the seals of big machine such as HITACHI
EX1200,EX3600,EX5500,EX5600,EX8000；We have professional oil seal
knowledge.
5. Products list
| Cylinder kit | HYDRAULIC SEAL KIT | Machine brands | Engine brands |
| BOOM CYLINDER SEAL KIT | ADJUSTER CYLINDER SEAL KIT | Hitachi | ISUZU |
| ARM CYLINDER SEAL KIT | CENTER JIONT KIT | SUMITOMO | KOMATSU |
| BUCKET CYLINDER SEAL KIT | SWING MOTOR SEAL KIT | KOMATSU | Hitachi |
| BREAKER SEAL REPAIR KIT | TRAVEL MOTOR SEAL KIT | VOLVO | Cummins |
| CRANE SEAL REPAIR KIT | CONTROL VALVE SEAL KIT | HYUNDAI | Yanmar |
| GRADER SEAL REPAIR KIT | PIOLVE VALVE SEAL KIT | | Hino |
| LOADER SEAL REPAIR KIT | HYDAULIC PIMP SEAL KIT | DAEWOO /DOOSAN | MAHLE |
| BLADE SEAL KIT | PUMP PLUNGE SEAL KIT | KOBELCO | etc |
| SERVO VALVE SEAL KIT | GEAR PUMP SEAL KIT | CASE | |
| DRILLING RIG REPAIR KIT | AV SEAL KIT | XGMA,XCMG | |
| CONCRETE TRAILER PUMP SEAL KIT | MAIN PUMP SEAL KIT | JCB | |
| CRAWLER BULLDOZER SEAL KIT | SOLENOID VALVE SEAL KIT | SUNWARD | |
| JOSYTIC SEAL KIT | | John Deere E | |
| | YANMA | |
| | | |
| OIL SEAL | Piston seal | Others | Wiper seal |
| TC TCN TCV | SPGW SPGO | WARE RING/WR | DKB DKBI |
| SB SC TB | SPG SPGA | KZT KZM | DKBZ DKI |
| DCY TC4Y | NCF V-SET | N4W | DWI DKH |
| VC VB | ODI OSI OUIS | BACK UP RING | DSI LBI |
| TC4 TB4 TG4 | OHM UKH KDAS | ROI SPN | LBI DHS |
| DC DB | OK SEAL | BRT | VAY DLI |
| VR MG OKC3 | OUY | D-RING | DWIR |
| QLFY | HBY | O-RING | LBH |
| HBTS | EU SEAL | ... |
| HBTTS | FLOATING SEAL | |

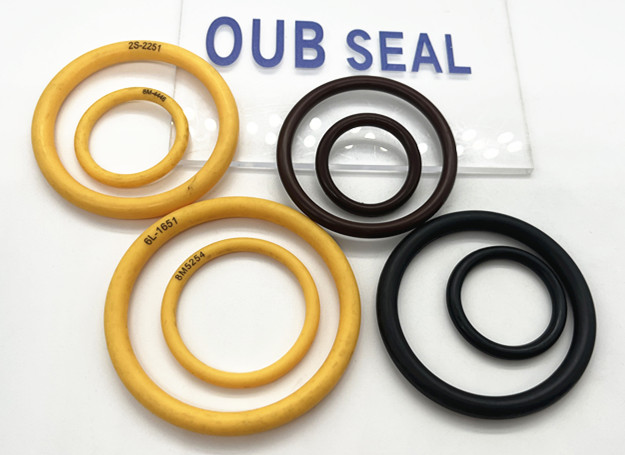

6. Some O-RING Part no. show room
O-RING SIZE:3.1mm,5.7mm,8.4mm follow the part NO.
| O-RING PART NO. | O-RING PART NO. | O-RING PART NO. | O-RING PART NO. |
| 039392 | 4104498 965702 | 0669906 | 4506430 0173618 |
| 0407707 4S00060 | 4123448 4153562 | 0669906 | 4508805 0719402 |
| 0408410 | 4138938 0159307 | 0682322 | 4509180 0134414 |
| 0408411 | 4150302 CH11570 | 0682323 | 4509181 0134413 |
| 0411419 4S01093 | 4153108 4206429 | 0682502 | 4509182 0134460 |
| 0411419 4S01093 | 4187308 4009553 | 0694604 A811085 | 4514164 4511267 |
| 0411803 | 4203611 A811125 | 0703101 | 966689 0166704 |
| 0411901 | 4212036 4366517 | 0703102 | 970860 4006684 |
| 0412003 | 4226444 4038402 | 0717202 | 976602 4226443 |
| 0412210 | 4317636 0126307 | 0717203 | 984614 4038867 |
| 0419806 0308624 | 4323631 4S01096 | 0717207 A811270 | 985096 4045633 |
| 0419806 0308624 | 4350187 4511428 | 07191402 | 985098 0225309 |
| 0419812 | 4365074 4153089 | 0809510 | 985099 985582 |
| 0419812 | 4365349 4342841 | 0809711 | AT264324 |
| 0425115 119003 | 4365823 4342843 | 0809720 | AT264324 4430508 |
| 0425117 | 442202 0224422 | 0809726 | AT992446 |
| 0443405 | 4445928 0327317 | 0809731 | CH11436 4292387 |
| 0443408 4297381 | 4500578 971823 | 0809731 | T59014 |
| 0443801 4366517 | 4501764 4350206 | 0809735 | 0619307 |
| 0443803 | 4506320 A813010 | 0810603 | 125801 |
| 0451033 | 4506404 0624703 | 0810714 | 249308 |
| 0451035 | 4506405 4038403 | 0810715 | 134607 |
| 0451035 436622 | 4506406 4500581 | 0810725 | 4511394 |
| 0451036 | 4506407 0232126 | 0820432 | 134415 |
| 0451037 | 4506408 0232127 | 0820433 TH100679 | 4018070 0669501 |
| 0451041 | 4506409 R28782 | 0838002 | 4018880 4070049 |
| 0477008 | 4506412 0130526 | 0957366 0212115 | 4028265 0130524 |
| 0496103 | 4506415 0225314 | 097011 | 4029572 4035821 |
| 0624703 | 4506416 0125433 | 0979002 | 4034659 4035038 |
| 0669106 4343074 | 4506418 0126308 | 0979231 | 4036814 4200487 |
| 0669608 | 4506420 0117670 | 4003062 0391721 | 4039948 4081845 |
| 0669624 | 4506424 0134434 | 4006808 955655 | 4045632 4505092 |
| 0669624 | 4506428 0159712 | 4007530 985100 | 4058971 0408409 |
