Brand Name : | OUB |
Model Number : | 113-15-22720 1131522720 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000SET |
Delivery Time : | Within 5-15 days after getting your desposit |
1. Product Details
Part NO. | 113-15-22720 1131522720 |
Machine | Komatsu |
Model | D21A D21AG D21E D31Q D31S D31SM PW128UU GD305A GD355A GD405A WA40 DWT031 DWT037 |
Size | OEM Standard |
Material | HQC,HQP,HQE |
Color | Silver Gray |

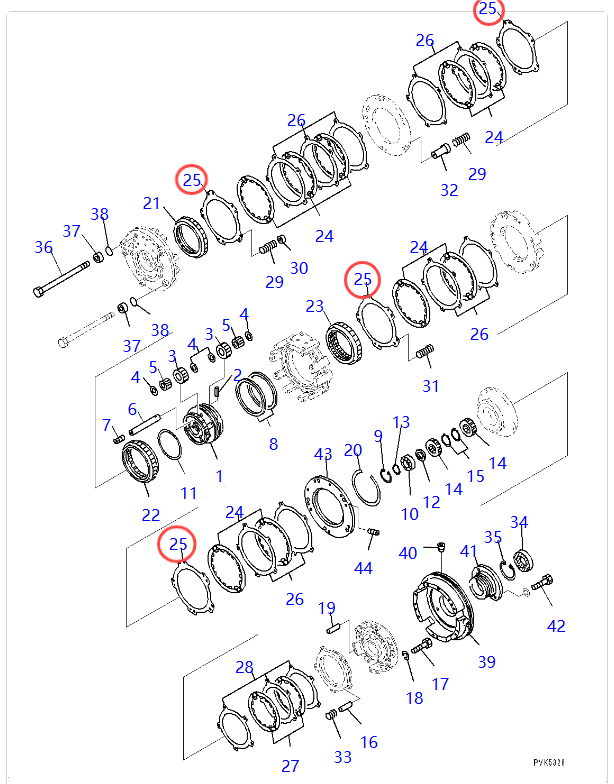

2. 113-15-22720 ON GROUP:
Pos. | Part No | Qty | Parts name |
1. | 104-15-22322 | [1] | Carrier |
2. | 113-15-29560 | [4] | Pin, Spring |
3. | 103-15-22421 | [8] | Gear |
4. | 113-15-32560 | [16] | Washer, Thrust |
5. | 104-15-49430 | [8] | Bearing |
6. | 103-15-22521 | [4] | Shaft |
7. | 145-14-11320 | [4] | Plug |
8. | 113-15-29240 | [2] | Seal Ring |
9. | 04065-06220 | [1] | Ring, |
10. | 06000-06007 | [1] | Bearing |
11. | 113-15-22930 | [1] | Ring, |
12. | 104-15-22170 | [1] | Spacer |
13. | 04064-03515 | [1] | Ring, |
14. | 104-15-42230 | [2] | Gear |
15. | 103-15-29510 | [2] | Ring, |
16. | 104-15-21280 | [10] | Pin |
17. | 01010-80845 | [10] | Bolt |
18. | 01602-20825 | [10] | Washer |
19. | 04020-01024 | [2] | Pin, Dowel |
20. | 113-15-29510 | [1] | Ring, |
21. | 104-15-22620 | [1] | Gear, Ring |
22. | 103-15-22630 | [1] | Gear, Ring |
23. | 104-15-22641 | [1] | Gear, Ring |
24. | 113-15-42711 | [9] | Disc |
25. | 113-15-22720 | [4] | Friction Disc |

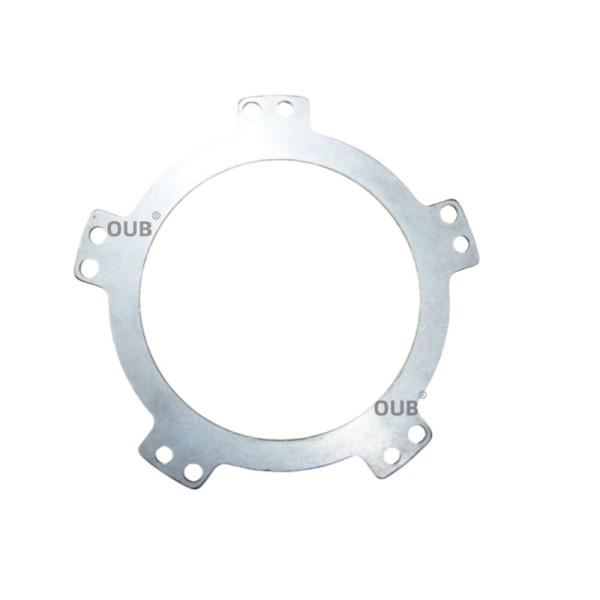

3. Picture details of 113-15-22720:
4. Part No.on the Group
Part No. | Part No. |
23S-15-12740 | 131-10-11110 |
104-22-33321 | 131-10-11120 |
110-22-11332 | 131-10-61140 |
111-11-12120 | 131-21-43220 |
113-15-22720 | 150-21-23111 |
113-15-22730 | 175-22-11140 |
124-15-52710 | 232-25-51430 |
125-15-32750 | 235-25-11360 |
5. Our advantages
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the model number of the Friction Disc?
A2: The model number of the Friction Disc is 113-15-22720
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable
time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or
picture.
Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.
