Brand Name : | OUB |
Model Number : | 125-15-32750 1251532750 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000SET |
Delivery Time : | Within 5-15 days after getting your desposit |
1. Product Details
Part NO. | 125-15-32750 1251532750 |
Machine | Komatsu |
Model | D41A D41E GD305A GD355A GD405A GD505A GD605A GD611A GD661A GD663A LW250L |
Size | OEM Standard |
Material | HQC,HQP,HQE |
Color | Silver Gray |

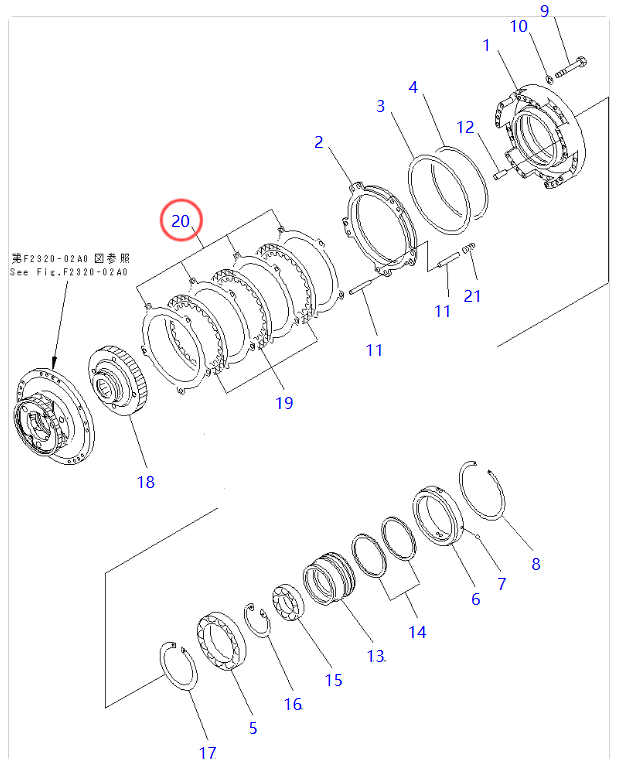

2. 125-15-32750 ON GROUP:
Pos. | Part No | Qty | Parts name |
1. | 124-15-52341 | [1] | HOUSING,1ST |
2. | 124-15-52770 | [1] | PISTON |
3. | 113-15-29250 | [1] | RING (K1) OEM |
4. | 103-15-29270 | [1] | SEAL (K1) |
5. | 06000-06921 | [1] | BEARING |
6. | 124-15-52390 | [1] | BUSHING |
7. | 04260-00635 | [1] | BALL |
8. | 04071-00150 | [1] | RING |
9. | 01010-80875 | [18] | BOLT |
10. | 01643-50823 | [18] | WASHER |
11. | 22W-15-21290 | [10] | PIN,(D=10.0¤ L= 65.0) |
12. | 04020-01024 | [2] | PIN |
13. | 124-15-52381 | [1] | CAGE |
14. | 07018-21155 | [2] | RING |
15. | 06042-00210 | [1] | BEARING |
16. | 04065-09030 | [1] | RING |
17. | 04070-00105 | [1] | RING |
18. | 124-15-52271 | [1] | HUB |
19. | 124-15-52710 | [3] | Friction Disc |
20. | 125-15-32750 | [4] | Friction Disc |
21. | 23A-15-12910 | [5] | SPRING,(L= 35.0) |
3. Picture details of 125-15-32750:
4. Part No.on the Group
Part No. | Part No. |
131-10-11120 | 23S-15-12740 |
131-10-61140 | 104-22-33321 |
131-21-43220 | 110-22-11332 |
150-21-23111 | 111-11-12120 |
175-22-11140 | 113-15-22720 |
232-25-51430 | 113-15-22730 |
235-25-11360 | 124-15-52710 |
281-15-12720 | 125-15-32750 |
5. Our advantages
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the model number of the Friction Disc?
A2: The model number of the Friction Disc is 125-15-32750
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable
time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or
picture.
Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days
after getting your deposit.
