232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470

Guangzhou Opal Machinery Parts Operation Department
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470 from wholesalers

    Buy cheap 232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470 from wholesalers
    • Buy cheap 232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470 from wholesalers
    • Buy cheap 232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470 from wholesalers
    • Buy cheap 232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470 from wholesalers

    232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470

    Ask Lasest Price
    Brand Name : OUB
    Model Number : 232-25-51430 2322551430
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000SET
    Delivery Time : Within 5-15 days after getting your desposit
    • Product Details
    • Company Profile

    232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470


    1. Product Details

    Part NO.232-25-51430 2322551430
    MachineKomatsu
    ModelGD505A GD623A GD705A GD725A GD755 GD805A GD825A GH320 WA350 WA400 WA470
    SizeOEM Standard
    MaterialHQC,HQP,HQE,HQM
    ColorSilver

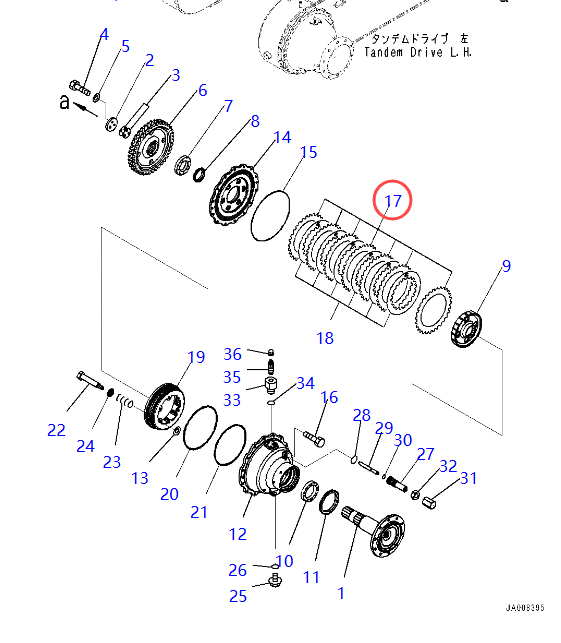

    2. 232-25-51430 ON GROUP:

    Pos.Part NoQtyParts name
    1.23C-25-61130[2]Shaft
    2.23C-25-51370[2]Holder
    3.23C-25-51410[4]Shim, T=0.5mm
    3.23C-25-51420[6]Shim, T=0.2mm
    3.23C-25-51430[2]Shim, T=0.1mm
    3.23C-25-51440[2]Shim, T=0.05mm
    4.01010-61650[6]Bolt
    5.01643-31645[6]Washer
    6.23C-25-61150[2]Sprocket
    7.06302-30220[2]Bearing
    8.23C-25-61350[2]Spacer
    9.23C-25-61170[2]Gear
    10.421-22-32850[2]Bearing
    11.423-22-22461[2]Seal OEM
    12.23C-25-61111[2]Cage
    13.23C-25-61190[12]Washer
    14.23C-25-61160[2]Cage
    15.07000-15460[2]O-ring
    16.01010-81635[4]Bolt
    17.232-25-51430[14]Plate OEM
    18.23C-25-51331[12]Disc
    19.23C-25-51120[2]Piston
    20.232-25-51170[2]O-ring
    21.23B-25-33150[2]O-ring
    22.23B-25-33132[12]Guide
    23.714-12-17161[12]Spring
    24.23B-25-33610[12]Washer
    25.07044-12412[2]Plug


    3. Picture details of 232-25-51430:

    4. Part No.on the Group

    Part No.Part No.
    175-22-11140110-22-11332
    232-25-51430111-11-12120
    235-25-11360113-15-22720
    281-15-12720113-15-22730
    714-07-29710131-10-11110
    12F-10-11240131-10-11120
    23S-15-12720131-10-61140
    23S-15-12730131-21-43220

    5. Our advantages


    • We are a factory and we also have our own sales team.
    • We have original software system data to support which 100% accurate.
    • We know how to protect your equipment with high-quality products and professional knowledge.


    6. FAQ
    Q1: What is the brand name of the Friction Disc?
    A1: The brand name of the Friction Disc is OUB.

    Q2: What is the price of the Friction Disc?
    A2: The price of the Friction Disc is negotiable.


    Q3: Can you send by air?
    A3: Of cause we can,we can send by DHL,FeDex,UPH or many other type..


    Q4: What are the packaging details for the Friction Disc?
    A4: The packaging details for the Friction Disc is PP Bag.


    Q5: What is the delivery time for the Friction Disc?
    A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit.


    7. Exhibition & Warehous






    Machine NO. ,Model No. Part No. , And More
