    100049A1 DISC Case Parts 921B 921C 921

    Ask Lasest Price
    Brand Name : OUB
    Model Number : 100049A1
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000SET
    Delivery Time : Within 5-15 days after getting your desposit
    • Product Details
    • Company Profile

    100049A1 DISC Case Parts 921B 921C 921


    1. Product Details

    Part NO.100049A1
    Machine

    CASE

    ModelCase parts 921B 921C 921
    SizeOEM Standard
    MaterialHQC,HQP,HQE
    ColorSilver Gray

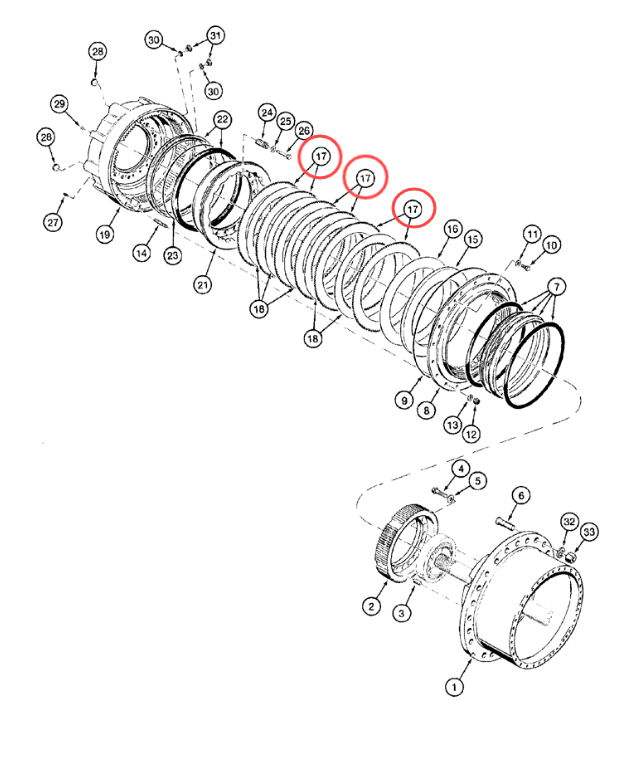

    2. 100049A1 ON GROUP:


    Pos.Part NoQtyParts name
    2S301706[1]PINION
    3S301716[2]DOWEL
    4S301814[15]BOLT
    5D74504[15]WASHER
    6S301019[46]STUD
    7S301717[2]SET
    8S301745[2]SUPPORT
    9S301744[2]O-RING
    10S301747[4]SCREW
    11S301746[4]WASHER
    12232-4618[36]LOCK NUT,1/2"-20, GC
    13D74508[36]WASHER
    14S301726[36]STUD
    15S301718[2]LARGE PLATE
    16S301719[1]BLOCK
    16S301720[1]BLOCK
    16S301721[1]BLOCK
    16S301722[1]BLOCK
    17100049A1[12]DISC
    18100050A1[10]DISC
    . .100062A1[1]HUB
    . .100061A1[1]HUB
    19S301727[1]HOUSING
    20S301728[1]HOUSING
    21S301725[2]PISTON
    22S301739[4]SEAL
    23S301740[2]O-RING
    24S301741[20]SPRING
    25S301742[20]WASHER
    26S301743[20]BOLT
    27S301729[2]PLUG
    28K12362[4]PLUG
    29NSS[1]
    30S301737[4]WASHER
    31S301738[4]PLUG
    32S92341[92]WASHER
    3329-1714[92]NUT,7/8"-14, G8, Hvy

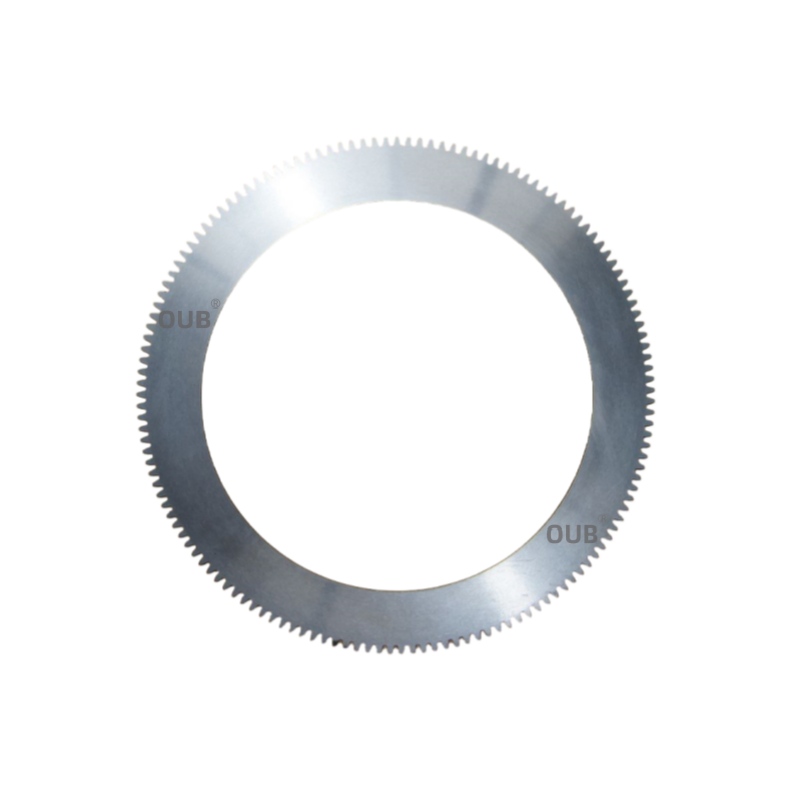

    3. Picture details of 100049A1:

    4. Part No.on the Group

    100049A13125322R2
    100050A1A188412
    237017A1D50040
    237021A1D50081
    237023A1D50084
    308029A1K963646
    308030A1

    5. Our advantages


    • We are a factory and we also have our own sales team.
    • We have original software system data to support which 100% accurate.
    • We know how to protect your equipment with high-quality products and professional knowledge.


    6. FAQ
    Q1: What is the brand name of the Friction Disc?
    A1: The brand name of the Friction Disc is OUB.

    Q2: What is the model number of the Friction Disc?
    A2: The model number of the Friction Disc is 4720763


    Q3. How many teeth of the friction?
    A3. We can tell you the teeth qty if you offer the part No. .


    Q4. Can you quote for only one part number?
    A4. Of cause.We can check by a part no.or machine no.or size or picture.


    Q5. Are you a factory or a trader?
    A5. We are a factory and we also have our own sales team.


    7. Exhibition & Warehous






    Machine NO. ,Model No. Part No. , And More
